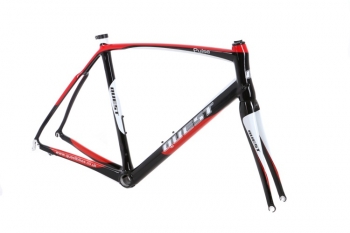

Quest Pulse Frameset

Quest Pulse Frameset

Price: 1,199.00 (Including VAT at 20%)


  • Medium/51cm
  • Large/54cm
  • XL/57cm


  • Pictures: Pulse1

  • Pictures: Pulse2

  • Pictures: Pulse 3

  • Pictures: Pulse4



New and revised full carbon race frameset for 2015, with improvements from the original model including the option of mechanical or electrical cable routing and the new PF30 bottom bracket as standard. Now using conventional removable seatpost to enable Di2 seatpost battery installation.


This frameset features all the newest developements in race frame design including: 11/4" oversized lower headset bearing, PF30 bottom bracket sytem and internal brake and gear cable routing.
  • Finished in black, red and white Team Quest colours.
  • Requires braze on front gear mech.
  • Supplied with integrated aheadset, saddle clamp and cable guides.
  • Electrical or mechanical cable routing.


Quest Pulse Frameset (all sizes in millimetres)

SizeSeat TubeTop TubeHead Tube
Medium510540120
Large540555155
XL570570190


For further information on dimensions of framesets please contact us at questbikes@aol.com or 020 8427 5454

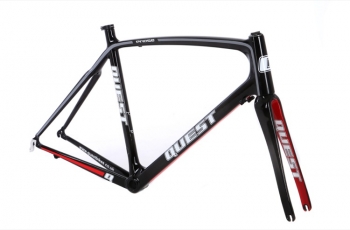

Quest Phase Frameset

Quest Phase Frameset

Price: 798.99 (Including VAT at 20%)


  • XS/48cm
  • Small/50cm
  • Medium/53cm
  • Large/55cm
  • XL/58cm



New for 2015, competitively priced full carbon race frameset with tapered head tube and oversized down tube to give ultra stiff and efficient riding comfort.

  • Tapered head tube
  • Replacable hanger
  • Full carbon tube to tube construction


Quest Phase Frameset (all sizes in millimetres)

SizeSeat TubeTop TubeHead Tube
XS480520110
Small500535125
Medium530550155
Large550568180
XL580585200


For further information on dimensions of framesets please contact us at questbikes@aol.com or 020 8427 5454

Quest Vapour Frameset

Quest Vapour Frameset

Price: 1,098.99 (Including VAT at 20%)


  • Small/48cm
  • Medium/51cm
  • Large/54cm
  • XL/57cm



This is our lightest ever full carbon fibre race framset featuring tube to tube construction and super thin seatstay design. Approx frame weight around or just under 800gms !

This frameset features all the newest developements in race frame design including: 11/4" oversized lower headset bearing, BB30 bottom bracket sytem and internal rear brake cable routing.
  • Finished in stealth matt black and white Quest graphics
  • Requires braze on front gear mech.
  • Supplied with integrated aheadset, saddle clamp and cable guides.
  • BB30 bearings and Shimano Hollowtech convertor available as an option.
  • Sizes measured from centre of bottom bracket to top of top tube


Quest Vapour Frameset (all sizes in millimetres)

SizeSeat TubeTop TubeHead Tube
Small48052590
Medium510530120
Large540555.7155
XL570570190


For further information on dimensions of framesets please contact us at questbikes@aol.com or 020 8427 5454

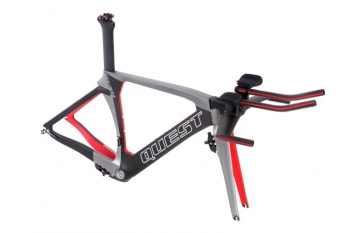

Quest Rush Air TT Frameset

Quest Rush Air TT Frameset

Price: 1,450.00 (Including VAT at 20%)


  • XS/450
  • Small/490
  • Medium/520
  • Large/540



Time trial frameset new for 2015. With ultimate aero dynamic design features including integrated handlebar and stem with headset, concealed mini V-brakes, designed for mechanical or electronic cable routing. The frameset comes supplied with multi position seatpost, aero one-piece handlebar set and mini V-brakes.

  • Latest time trial frame design
  • Frame, handlebar, stem, seatpost and brakes included
  • Full carbon fibre construction


Quest Rush Frameset (all sizes in millimetres)

SizeSeat TubeTop TubeHead Tube
XS/45045049091
Small/490515511101.5
Medium/520525531111.5
Large/540542550129.5


For further information on dimensions of framesets please contact us at questbikes@aol.com or 020 8427 5454

Quest 918 Track Frameset

Quest 918 Track Frameset

Price: 999.92 (Including VAT at 20%)




Specialist full carbon fibre track frameset with profiled aero tube sections, forks and supplied seatpost.
Ultra stiff and efficient design that is UCI approved.

Replaceable stainless steel rear dropoyts with end adjusters.
Supplied with aero seatpost and integrated aheadset
Available in 3 sizes measured centre bottom bracket to top of seat tube

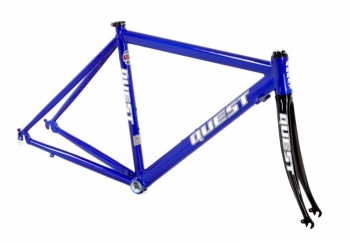

Quest Training/Audax Frameset

Quest Training/Audax Frameset

Price: 299.98 (Including VAT at 20%)


  • 52cm
  • 54cm
  • 56cm
  • 58cm
  • 60cm



Tried and tested over several years, our best selling Winter training bike built with lightweight butted alloy tubing and carbon fibre forks. Designed with clearance for up to 700x28c and mudguards. This frame also comes supplied with integrated sealed bearing headset.

Supplied with 11/8" sealed bearing aheadset and seat clamp. Please note: requires 57mm drop brakes.
Finished in deep blue flam.
Sizes measured from top of seat tube to centre bottom bracket
Ideal for the basis of a high quality Audax, day touring or all weather training bike.

(We can also supply the same frameset to accept standard drop brakes that will then except mudguards and 700 x 23c tyres. Please let us know if you prefer this design when you make your order)

Giant Propel Advanced Pro Frameset 2017

Giant Propel Advanced Pro Frameset 2017

Price: 1,499.00 (Including VAT at 20%)




Every aspect of this frame is engineered as a complete system to deliver unbeatable aero road performance. Extensive CFD analysis and dynamic wind tunnel testing was used to optimise every frame tube and angle in a process called AeroSystem Shaping technology. The frame is then handcrafted using Advanced-grade composite material to produce a bike that’s both stiff and light, with a sharp responsive ride quality. Purpose built aero road technologies including SpeedControl SL brakes and a Vector seatpost further enhance this well-rounded, wind-slicing performer.
  • Advanced SL-Grade Composite, Variant Integrated Seatpost Frame
  • Advanced SL-Grade Composite, Full-Composite OverDrive 2 Steerer Fork
  • Giant Vector Composite seatpost
  • Giant SpeedControl SL brakes
  • Includes OD2 headset


Giant Propel Advanced SL Frameset 2017

Giant Propel Advanced SL Frameset 2017

Price: 2,499.00 (Including VAT at 20%)




It's the frame of choice for Team Giant-Alpecin sprinters and breakaway artists. They know it gives them an edge because it's been proven through third party aerodynamic testing. Engineered and developed with AeroSystem shaping technology, which means every tube shape and angle is optimised for minimal drag, the Advanced SL-grade composite frame is stiff and efficient yet still superlight. Best of all, it saves you 12-36 seconds over a distance of 40km at a speed of 40kph compared to key competitors. With proven technologies including the SpeedControl SL brake system, an integrated vector seatpost and internal cable routing, it's the bike you choose when every second counts.
  • Advanced SL-Grade Composite, Variant Integrated Seatpost Frame
  • Advanced SL-Grade Composite, Full-Composite OverDrive 2 Steerer Fork
  • Includes OD2 headset
  • Giant SpeedControl SL brakes

Giant TCR Advanced Pro Frameset 2017

Giant TCR Advanced Pro Frameset 2017

Price: 1,299.00 (Including VAT at 20%)




Climbing, descending, cornering and sprinting - the award-winning TCR Advanced Pro gives you every advantage on the road. Through superior engineering and composite manufacturing, the proven Advanced-grade composite frame minimises weight without sacrificing its best-inclass stiffness. Legendary Compact Road race geometry blends quick handling with aggressive positioning, while the OverDrive 2 steerer tube delivers precise steering performance. The Variant seatpost helps smooth out the ride, giving you a well-rounded machine for your road racing ambitions.
  • Advanced-Grade Composite Frame
  • Advanced-Grade Composite, Full-Composite OverDrive 2 Steerer Fork
  • Giant Variant Composite Seatpost
  • Includes OD2 headset

Giant TCR Advanced SL Frameset 2017

Giant TCR Advanced SL Frameset 2017

Price: 1,999.00 (Including VAT at 20%)




Power up steep climbs. Attack twisting descents. Edge out rivals in heated sprints. The TCR Advanced SL has earned its reputation as the ultimate all-around race bike. This is the lightest road frameset ever produced by Giant and it boasts the highest stiffness-to-weight ratio of any road bike on the market. The new Variant integrated seatpost delivers an improved ride quality for more comfort on the longest, hardest rides and the Advanced SL-grade composite frame makes the most of its proven Compact Road Design.
  • Advanced SL-Grade Composite, Variant Integrated Seatpost Frame
  • Advanced SL-Grade Composite, Full-Composite OverDrive 2 Steerer Fork
  • Includes OD2 headset

Pinarello Dogma F8 Frameset 2016

Pinarello Dogma F8 Frameset 2016

Price: 3,899.00 (Including VAT at 20%)



  • Naked/Red
  • Carbon Red
  • BoB
  • Bianco
  • Team Sky
  • Naked/Silver



The Pinarello Dogma F8 Frameset follows on from the success of the Dogma 65.1 and its back-to-back Tour De France victories, World Championships and over 100 Pro Tour races. Pinarello has worked closely to optimise aerodynamics with Jaguar, collaboration from Team Sky and conducted wind tunnel testing in the PinarelloLAB to breed the Dogma F8.

The already impeccable Dogma was completely re-designed by the super car engineering team at Jaguar who teamed up with the PinarelloLAB to develop the new Dogma F8. Keeping the existing and hugely effective geometry, the test results of the F8 show some vast improvements, all of which shows how valuable an asset a super car manufacturer can be:

12% more rigid
16% more balanced
120g lighter
47% improved aerodynamics
Pinarello have gone with an all new exclusive material for the Dogma F8, Torayca T1100 1k Dream Carbon with Nano-Alloy technology. With an outstanding stiffness to weight ratio and its use as the outer skin of many modern aircraft, it is sensational. With the frame weighing in at 120g less than its 65.1 predecessor, but still retaining the same structural attributes.

Pinarello capitalised on Jaguar's engineering expertise by using their CFD (Computational Fluid Dynamics) technology as well as the existing 65.1 Dogma as a guideline. Through this process with over 70 configurations of the frame and 300 CFD analysis cycles the most aerodynamically efficient frame was generated. Flatback is the name given to the new tube shaping which was used to eliminate the turbulence created. Sticking to the UCI limit of a 3:1 tube profile the overall aerodynamic efficiency was increased. It still rides as well as the original Dogma yet it now even stiffer.

The fork is integrated into the tapered 1 1/8 to 1 1/2in head tube and the flatback downtube. Pinarello have chosen to stand by the threaded Italian bottom bracket it has used previously, due to their belief in its stiffness and reliability. The F8's asymmetric chainstays are combined with the new Onda RS F8 seatstays. Positioned to meet the seat tube lower down than on the 65.1, this hides the rear brake and the Twinforce integrated seat clamp. This increases the airflow past this section of the bike. The extensive CFD testing revealed that it was more aerodynamic to mount the seat tube bottle cage lower to reduce drag. Based on this Pinarello have chosen to include three bolt holes on the seat tube to satisfy the needs of every rider.

Attentively engineered internal cable routing allows the choice of mechanical or electronic gearing systems, without impacting on the bike's aerodynamics. Included are interchangeable frame stops at the entry and exit points on the frame that can be swapped throughout the frames lifetime should the rider choose to change between electronic and mechanical set-ups. The Carbon Air8 seatpost also houses the battery for both Shimano Di2 and Campagnolo EPS battery packs.

The Pinarello Dogma is available in 13 different sizes.
